High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution

Name: High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GPSR-1U-SA144
Price: 52.00 USD
Availability: InStock

Markenbezeichnung:	yingda
Modellnummer:	GPSR-1U-SA144
MOQ:	10PCS
Preis:	Verhandelbar
Lieferzeit:	15-18 days
Zahlungsbedingungen:	T/T,Western Union,paypal,L/C

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Place of Origin:

china

Zertifizierung:

ISO

Type:

FTTx Solutions

Fiber type:

MPO/MTP

Max Capacity:

288cores

Material:

Cold roll steel; PC material front transparent cover

Dimension:

2U 19"

Application:

FTTX, Telecom,Data center

Packaging Details:

1pc per box, 1pcs per carton box

Supply Ability:

1000pcs per month

Beschreibung des Produkts

High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution

The panel is made with cold rolled sheet and frosted painting; cassette is made with aluminum, and adapter plate is made with plastic. the cassette is fixed on the panel with pressing valve MPO fiber optic patch panel, SC/FC/ST/LC,UPC,APC connectors, 1U,2U,4U, we are manufacturer of MPO fiber optic patch panels and cassettes, MPO cable assemblies and components. Typical MPO fiber optic patch panel is with 1U 19 standard size, inside the patch panel, it can be splice trays with 1 X N MPO fiber cable assemblies, or it can use our MPO fiber optic cassette to integrate into the patch panel, the 1U MPO fiber patch panel can be with max 48 cores or 72 cores output optical strand, the output connectors can be SC/FC/ST/LC.

MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

Fiber Adapter Panel 144cores Specification

MPO Patch Panel Specification

Part no.	FHD1R144-C04FD	FHD3R288-C04FD	FHD4R576-C04FD
Fiber count	144 cores	288 cores	576 cores
Dimension	482.645544.5mm	482.645589mm	482.6455177mm
Cassette quantity	12 pcs	24 pcs	48 pcs
Material	CRS Cold rolled steel
Compliance	TIA/EIA-568-C.3
Installation	Standard EIA 19″ Rack
Enclosure type	Rack Mount sliding out patch panel

Application:
Data centers, pre-terminated installations
Telecommunication networks
Storage area networking fiber channel
High density architectures

Optical Distribution Panel 4U Pack information

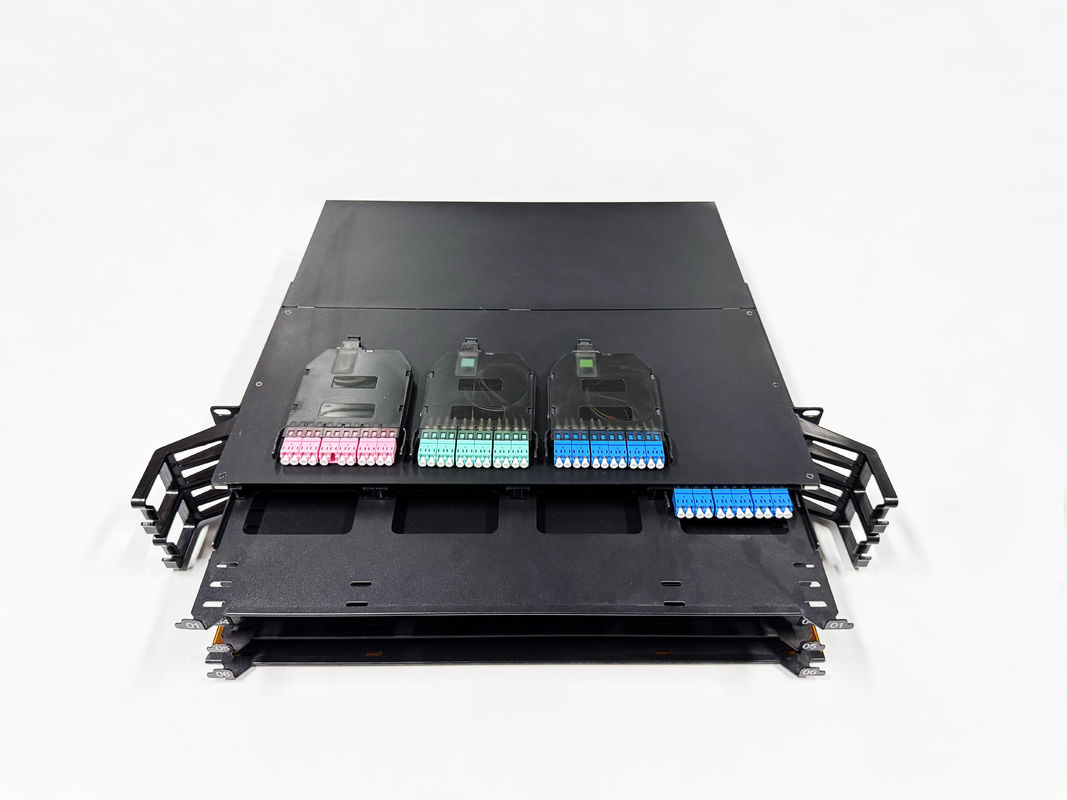

High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 0

Quantity/carton box	Carton size	Weight/carton box
1pc	473528cm	10kg

Yingda Offer all kinds of MPO series box, welcome inquiry.

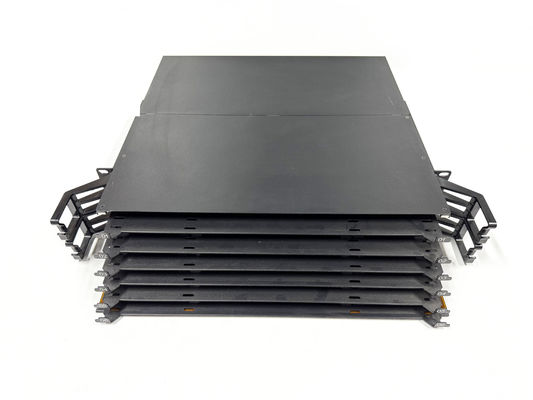

High Density 2U 19 Inch 144 Core for MPO to LC MTP Unload Slide Fiber Optic Patch Panel MPO Rack Data Center Solution 1

24 Fiber MPO Cassette MPO Harness Cable MPO Truck Cable
