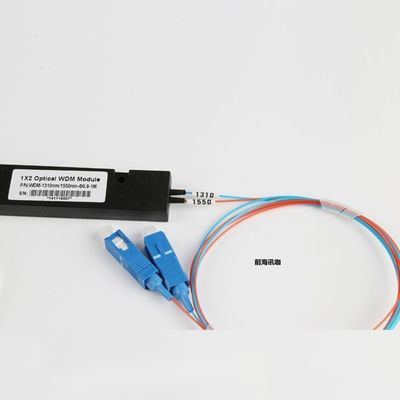

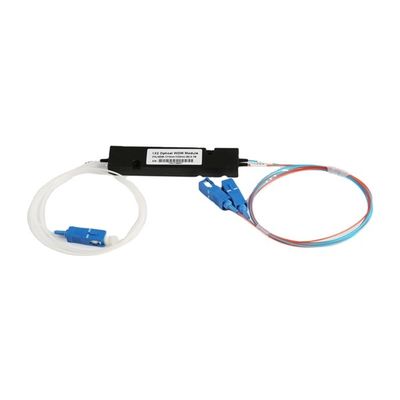

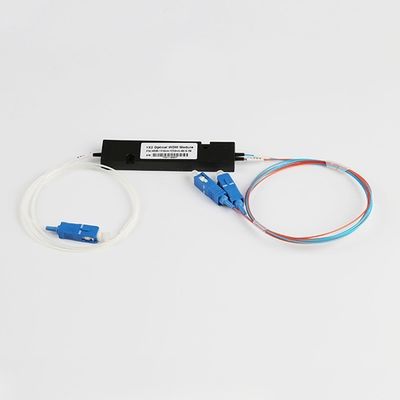

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable

Name: ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable
Brand: YINGDA TECHNOLOGY LIMITED
SKU: FWDM 1X2-SC UPC 0,9 mm ABS
Price: 2.10 USD
Availability: InStock

Markenbezeichnung:	Yingda
Modellnummer:	FWDM 1X2-SC UPC 0,9 mm ABS
MOQ:	100 Stück
Preis:	1.1USD-4.58USD
Lieferzeit:	7 Tage
Zahlungsbedingungen:	T/T, Western Union, MoneyGram

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

ISO

Betrachtung:

1310/1490nm

Übertragung:

1550 nm

Connector Type:

SC/UPC SC/APC

Art der Faser:

SMF-28e

Paket:

Blisterbox, 1 Stück/Box

Verpackung Informationen:

1 Stück pro Box, 10 Stück pro Masterbox

Versorgungsmaterial-Fähigkeit:

20000 Stück pro Monat

Hervorheben:

1*2 WDM Module

1*2 FWDM Coupler

ABS Module WDM

Beschreibung des Produkts

FWDM device s based on environmentally stable Thin Film Filters technology. The flitter wdm device combines or separates light at different wavelengths in a wide wavelength range.

Features

Low insertion loss

High isolation

High stability and reliability

Application

Fiber laser

Fiber amplifier

Testing equipment

The device combines or separates light at different wavelengths (1310nm/1490nm/1550nm) in a wide wavelength range.
It can expand the capacity of a single fiber to achieve bidirectional communication, so that widely used in optical network upgrade and expansion, or introduce new comprehensive optical transfer solutions etc.

Specification

Parameter		FWDM 4/35	FWDM 5/35	FWDM 35/5
Pass Band Wavelength Range (nm)		1480~1500	1540~1560	1260~1360 & 1480~1500
Reflection Band1 Wavelength Range (nm)		1260 ~ 1360	1260 ~ 1360	1540~1560
Reflection Band1 Wavelength Range (nm)		1540~1560	1480~1500
Insertion Loss (dB)	Reflect Channel	≤0.6
	Pass Channel	≤0.8
Pass Band Rippler(dB)		<0.3
Isolation (dB)	Reflect Channel	> 15
	Pass Channel	>30
Insertion Loss Temperature Sensitivity (dB/℃)		<0.005
Polarization Dependent Loss (dB)		<0.1
Polarization Mode Dispersion (ps)		<0.1
Directivity (dB)		>50
Return Loss (dB)		>50
Maximum Power Handling (mW)		500
Operating Temperature (℃)		-20 ~+70
Storage Temperature (℃)		-40 ~+85
Package Dimension (mm)		1. Φ5.5 x L34(for 900um Loose tube) 2. Φ5.5 x L30(for bare fiber ) 3. L90xW20xH9.5(for 2.0/3.0mm Cable)

NOTE:

For device with connectors, IL is 0.3dB higher, RL is 5dB lower, ER is 2dB lower. The default connector key is aligned to slow axis.

Package information:

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable 0

ABS Module WDM FWDM Coupler 1*2 With Connector SC UPC 0.9MM Cable 1
