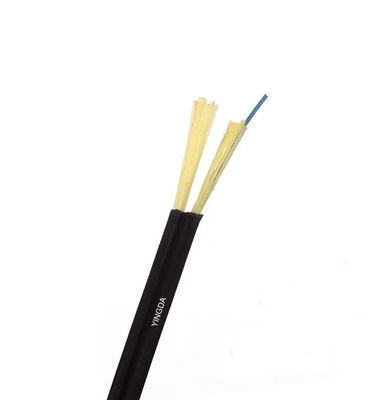

Abbildung 8 FTTH FTTX Kabel HDPE des Transceiverkabel-1Core Mini Aerial Outdoor Fiber Optic

Name: Abbildung 8 FTTH FTTX Kabel HDPE des Transceiverkabel-1Core Mini Aerial Outdoor Fiber Optic
Brand: YINGDA TECHNOLOGY LIMITED
SKU: GJYFJC8H
Price: 29.18 USD
Availability: InStock

Markenbezeichnung:	YINGDA
Modellnummer:	GJYFJC8H
MOQ:	2 KILOMETER
Preis:	Verhandelbar

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Zertifizierung:

ISO,SGS

Kabel-Jacke:

schwarz

Hüllen-Material:

HDPE

Faseranzahl:

1 Kern

Kabelgröße:

2.0*7.0mm

Anwendung:

FTTH-Luftberg

Stärke-Mitglied:

Aramid-Garn, Polyester-Garn

Verpackung Informationen:

2km/hölzerne Trommel

Hervorheben:

FTTH-Abbildung 8-Transceiverkabel

FTTX-Abbildung 8-Transceiverkabel

Mini Aerial Outdoor Fiber Optic-Kabel

Beschreibung des Produkts

FTTH FTTX Figure 8 Drop Cable GJYFJC8H 1Core Mini Aerial Outdoor Fiber Optic Cable HDPE

FTTH Drop Cable will be directly connected till end user home, the bandwidth, wavelength and transmission technology are not restricted. There is one messenger wire with polyester yarn, steel or steel strands for supporting in aerial mounting. It is quite popular now on market.

Application

House wiring
Lead-in cable
FTTH FTTX network
Conforms to IEC 60794-1-21 standards

Technical specification

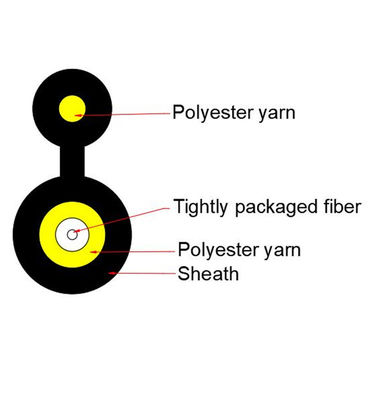

Cable Type	GJYFJC8H
Optical Fiber Unit	Fiber count	1core
	Fiber color code	G657A2, natural
	Tight buffer color	white
	Diameter	0.85mm
	Material	LSZH
Strength member	Material	Polyester yarn
	Color	Black
	Diameter	3.0±0.1mm
Brace	Height/width	0.7mm /0.6mm
Supporting wire	Material	Polyester yarn
Supporting wire	Diameter	2.0±0.1mm
Cable sheath material	LSZH
Cable color	Black
Cable height	5.7±0.1mm
Cable weight	14kg/km
Attenuation	1310nm≤0.4dB/km; 1550nm≤0.3dB/km;
Cable tray length	1KM
Cable marking	Indication in meters Quantity and type of fibers Factory name Date of manufacturing(year) Other requirements

Cable Test Results

Crush	Short term:500N/100mm	No fiber break and no sheath damage
Impact	Height:1m Number:3times Weight:1N	No fiber break and no sheath damage
Repeated	Bending radius (≥60mm): 40xD No. Of cycle:30 Load:20N	No fiber break and no sheath damage
Torsion	Cycle:20 Length under test:250m Turns:±180° Load:20N	No fiber break and no sheath damage
Temperature cycling	Temperature:-20°C~+60°C Time of each step:8h Number of cycle:2	Loss change≤0.5dB@1550nm No fiber break and no sheath damage

Schlagworte:

Einzelheiten Zu Den Produkten

Haus Produits

FTTH-Drop-Kabel

Abbildung 8 FTTH FTTX Kabel HDPE des Transceiverkabel-1Core Mini Aerial Outdoor Fiber Optic

Alle Kategorien

Abbildung 8 FTTH FTTX Kabel HDPE des Transceiverkabel-1Core Mini Aerial Outdoor Fiber Optic

Markenbezeichnung:	YINGDA
Modellnummer:	GJYFJC8H
MOQ:	2 KILOMETER
Preis:	Verhandelbar
Verpackungsdetails:	2km/hölzerne Trommel

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort:

China

Markenname:

YINGDA

Zertifizierung:

ISO,SGS

Modellnummer:

GJYFJC8H

Kabel-Jacke:

schwarz

Hüllen-Material:

HDPE

Faseranzahl:

1 Kern

Kabelgröße:

2.0*7.0mm

Anwendung:

FTTH-Luftberg

Stärke-Mitglied:

Aramid-Garn, Polyester-Garn

Min Bestellmenge:

2 KILOMETER

Preis:

Verhandelbar

Verpackung Informationen:

2km/hölzerne Trommel

Hervorheben:

FTTH-Abbildung 8-Transceiverkabel

FTTX-Abbildung 8-Transceiverkabel

Mini Aerial Outdoor Fiber Optic-Kabel

Beschreibung des Produkts

FTTH FTTX Figure 8 Drop Cable GJYFJC8H 1Core Mini Aerial Outdoor Fiber Optic Cable HDPE

Application

House wiring
Lead-in cable
FTTH FTTX network
Conforms to IEC 60794-1-21 standards

Technical specification

Cable Type	GJYFJC8H
Optical Fiber Unit	Fiber count	1core
	Fiber color code	G657A2, natural
	Tight buffer color	white
	Diameter	0.85mm
	Material	LSZH
Strength member	Material	Polyester yarn
	Color	Black
	Diameter	3.0±0.1mm
Brace	Height/width	0.7mm /0.6mm
Supporting wire	Material	Polyester yarn
Supporting wire	Diameter	2.0±0.1mm
Cable sheath material	LSZH
Cable color	Black
Cable height	5.7±0.1mm
Cable weight	14kg/km
Attenuation	1310nm≤0.4dB/km; 1550nm≤0.3dB/km;
Cable tray length	1KM
Cable marking	Indication in meters Quantity and type of fibers Factory name Date of manufacturing(year) Other requirements

Cable Test Results

Crush	Short term:500N/100mm	No fiber break and no sheath damage
Impact	Height:1m Number:3times Weight:1N	No fiber break and no sheath damage
Repeated	Bending radius (≥60mm): 40xD No. Of cycle:30 Load:20N	No fiber break and no sheath damage
Torsion	Cycle:20 Length under test:250m Turns:±180° Load:20N	No fiber break and no sheath damage
Temperature cycling	Temperature:-20°C~+60°C Time of each step:8h Number of cycle:2	Loss change≤0.5dB@1550nm No fiber break and no sheath damage
